Quick answer: movement at a rental kart's rear wheel does not automatically mean the axle bearing has failed. Play can come from the bearing, bearing holder, axle, wheel hub, keyway, wheel studs or loose mounting hardware. Find exactly where the movement starts before ordering parts.
A small amount of movement in the wrong place can affect more than the wheel. The rear axle also carries the drive and brake components, so bearing or hub problems can show up as chain alignment changes, brake-disc movement and inconsistent handling.
Symptoms worth investigating
Typical signs include:
- Rumbling or grinding from the rear of the kart
- Rear axle that feels rough when rotated
- Visible sideways or vertical movement
- One rear wheel moving independently of the axle
- Hub repeatedly becoming loose
- Clicking when drive loads change
- Brake disc moving sideways through the caliper
- Chain alignment that will not stay consistent
- Unusual heat around a bearing or carrier
- Repeated key or keyway damage
- Tyre wear that differs significantly from the rest of the fleet
None of those symptoms identifies one component on its own.
Isolate the kart and unload the axle
Securely support the kart using the workshop procedure so the rear wheels can rotate without the engine starting or the kart moving.
Never investigate a noise around an exposed chain, sprocket or axle with the engine running.
Turn the axle slowly by hand and listen and feel for roughness, tight spots and changes through a complete revolution.

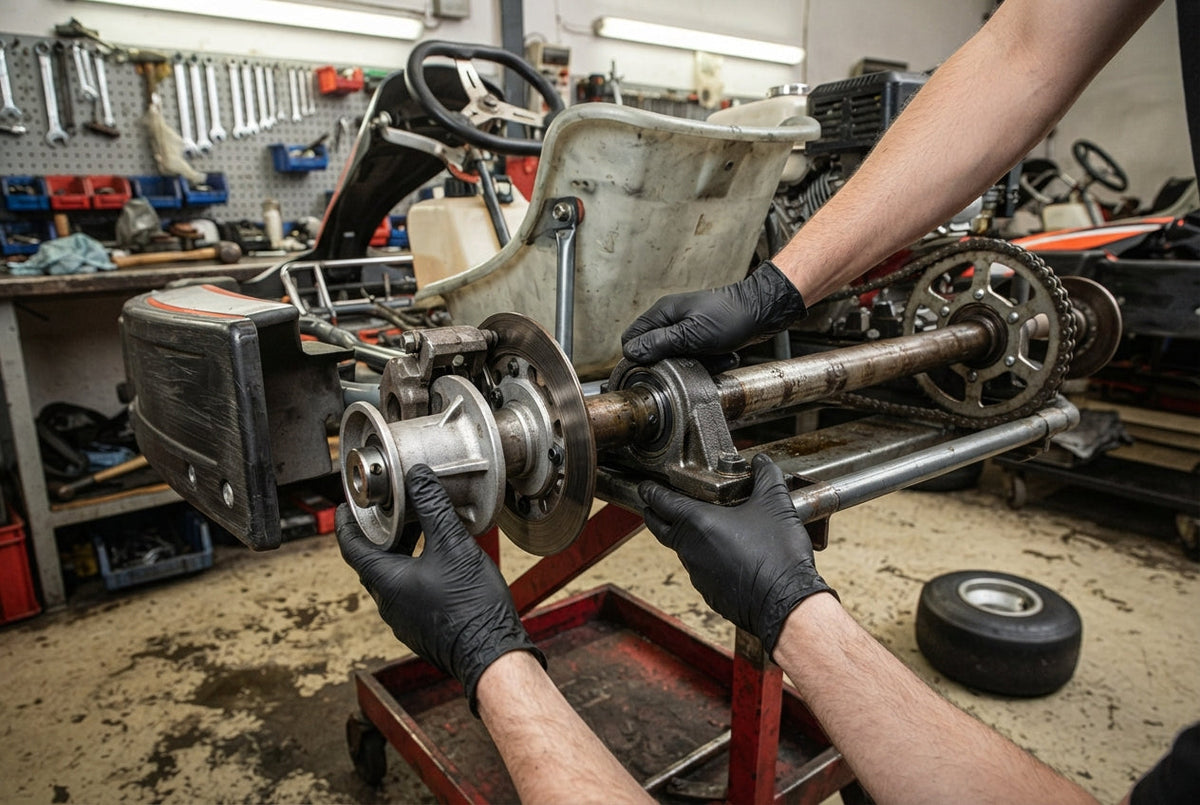

Find where the movement begins
The useful trick is to watch one joint at a time.
Hold or observe the axle while loading the wheel.
- If the wheel moves but the hub does not, investigate the wheel mounting and studs.
- If the hub moves on the axle, investigate the hub clamping arrangement, bore, key and keyway.
- If the axle moves inside the bearing, inspect the bearing locking arrangement and axle bearing surface.
- If the bearing and axle move together inside the housing, investigate the bearing holder and its mounting.
- If the whole carrier moves on the chassis, the bearing itself may be perfectly serviceable.
Check the bearing
With the load removed and the system isolated, check the bearing for:
- Roughness
- Notchiness
- Excessive movement
- Corrosion
- Damaged seals
- Evidence of overheating
- A loose inner ring
- Damaged locking screws or collar
- Movement between the outer bearing and housing
A bearing that rotates smoothly on the bench can still have a mounting problem once loaded, so inspect the holder and axle at the same time.
RiMO's manual says to check the screw connections of the rear axle bearing, wheel centres and wheel fixtures before starting the kart.
Look at the axle where the bearing runs
Do not fit a fresh bearing onto a damaged axle and expect the job to last.
Clean the bearing seat and inspect for:
- Scoring
- Fretting
- Steps worn into the axle
- Corrosion
- Flattening from locking screws
- Previous repair damage
- Incorrect bearing position
If the bearing has been moving on the axle rather than rotating internally, the axle surface can become damaged enough that a replacement bearing will not locate correctly.
Inspect the bearing holder
The carrier or holder supports the bearing and transfers axle loads into the chassis.
Check:
- Mounting bolts
- Cracks or distortion
- Oval or damaged bearing location
- Incorrectly seated bearing
- Previous impact damage
- Evidence the holder has shifted on the chassis
RKP stocks a 30mm axle bearing holder supplied with a UC206 bearing. That is one specific assembly, not a universal rental-kart bearing holder, so confirm dimensions and fitment before ordering.
Check the wheel hub separately
A loose rear hub can imitate an axle-bearing problem surprisingly well.
Remove and inspect it according to the kart manufacturer's procedure.
Check:
- Axle bore
- Clamping or retaining arrangement
- Key and keyway
- Wheel studs
- Cracks
- Distortion
- Fretting around the bore
- Damage where the key bears against the hub
If the hub has repeatedly worked loose, do not simply tighten it harder. Find out why.
RKP's rear hub range covers different axle diameters and hub lengths, so “rear kart hub” is not enough information to identify a replacement.
The key is small but important
The axle key transmits load between the axle and keyed components.
Inspect both the key and keyway for:
- Rounded edges
- Hammering or mushrooming
- Cracks
- Excessive clearance
- Key sitting proud
- Key too short for the component
- Damage to the axle keyway
- Damage inside the hub or carrier keyway
Replacing a battered key while leaving a damaged hub or axle keyway normally just produces another battered key.
Check what the axle problem is doing to the brake
The brake disc normally shares the same axle assembly.
If the axle or its bearings move sideways, the disc may move through the caliper as the kart runs.
That can contribute to:
- Changing pad clearance
- Longer brake pedal travel
- Uneven pad wear
- Disc rubbing
- Inconsistent braking
If there is visible disc movement, use the brake disc wear and run-out guide as part of the diagnosis. If the pedal has gone long or soft, see the soft or spongy brake pedal guide.
Check what it is doing to the chain
The same applies to the drive system.
A moving axle, bearing or carrier can alter sprocket alignment and tension.
If one kart repeatedly damages chains or sprockets, inspect:
- Axle bearing security
- Sprocket carrier security
- Axle straightness
- Sprocket run-out
- Engine or gearbox alignment
Do not repeatedly adjust the chain around a mechanical fault.
30mm does not identify the whole assembly
RKP stocks rear-axle components including UC206 30mm-bore and UC210 50mm-bore bearings, but axle diameter alone is not enough to identify the correct complete assembly.
Record:
- Axle diameter
- Bearing reference
- Bearing locking method
- Outside diameter
- Housing type
- Mounting-hole pattern
- Hub bore
- Hub length
- Keyway size
- Sprocket and disc carrier arrangement
If the bearing number is still visible, use the existing kart bearing identification guide before measuring from scratch.
Useful RKP links
- Rear Axle Components
- Kart Bearings
- 30mm Axle Bearing Holder with UC206 Bearing
- Rear Go Kart Wheel Hubs
- How to Read a Kart Bearing Number and Measure a Replacement
- How to Measure a Rental Kart Rear Axle Before Ordering
Before returning the kart to service
- Confirm bearings rotate smoothly.
- Check all bearing-holder and hub fasteners.
- Confirm the axle rotates without unexpected movement.
- Check brake-disc alignment.
- Check chain or belt alignment and tension.
- Check wheel security.
- Refit all guards.
- Carry out a controlled test before normal use.
RiMO's manual also says to check the wheels for damage and wear and to ensure they are properly mounted.
Sources
- RiMO User and Maintenance Manual
- HSE Maintenance of Work Equipment guidance
Use the maintenance procedure and limits for the exact kart. This guide is intended to help locate the fault, not replace manufacturer instructions.
